MatClass will significantly optimize your data maintenance: The clear presentation of the class structure and the efficient mass maintenance functions, such as transferring, copying, pasting or supplementing of specifically filtered and presorted materials.
Experience shows that the maintenance of product data is carried out by several employees in a company - often from different departments or locations. With MatClass, the database can be in a cloud storage or on company-owned servers so that all persons involved can access one master database for common data processing.
Separate private cloud areas also enable the maintenance of individual product series and the subsequent merging of data. With the authorization concept the editing rights of different user groups on read/write permissions, assortments or areas of the classification structures can be defined and restricted.
Extensive translations of descriptions and designations are considerably simplified by the integrated DeepL translation function.

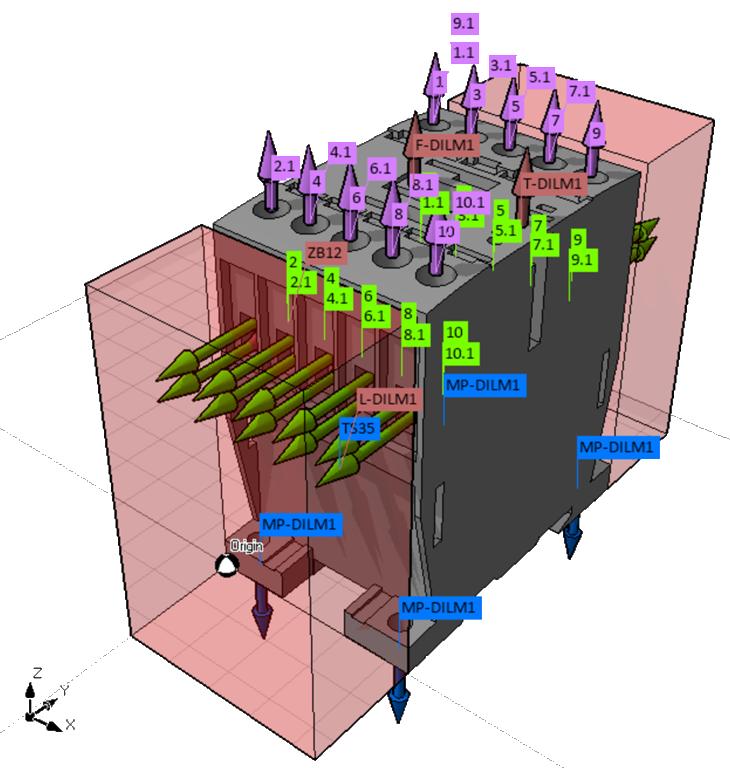

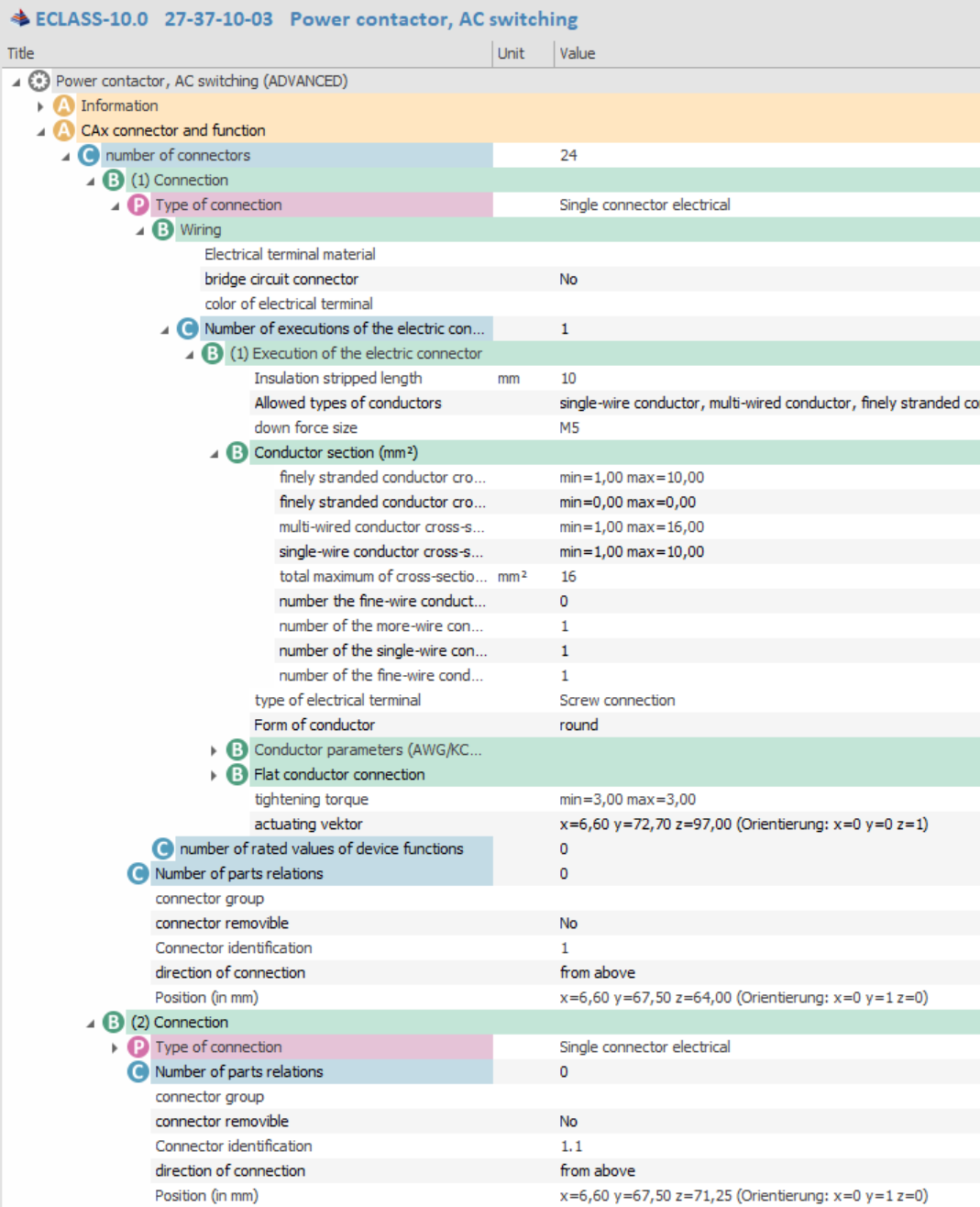

The combination of the representation of 3D product models (STEP) and the ECLASS ADVANCED data enables direct, visual control of the maintained characteristic values such as dimensions, connections, locking areas, component mounts and mounting options.
In this way, errors are detected at an early stage and the high reliability of the data is supported.
Basically, the user interface of MatClass can be application-specific designed and reused at any time (layouts). So the view of features, arrangement of windows, etc. is always as you need it. This makes the maintenance process as comfortable as possible.

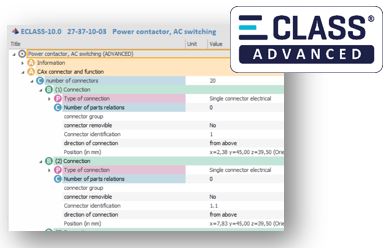

Values from existing ETIM classifications can be transferred into ECLASS classification by the use of mappings and thus serve as a good basis for the more comprehensive ECLASS ADVANCED data maintenance.
Why not using a smart tool to maintain the huge amount of ECLASS/Advanced data?
Your products will only be used in engineering projects when there is sufficient product data in required quality!
Quick and uncomplicated access to required information is a decisive competitive advantage. In the age of Industry 4.0, this factor becomes more and more important because for the reliable implementation of automated digital processes, standardized and detailed described product data is mandatory.

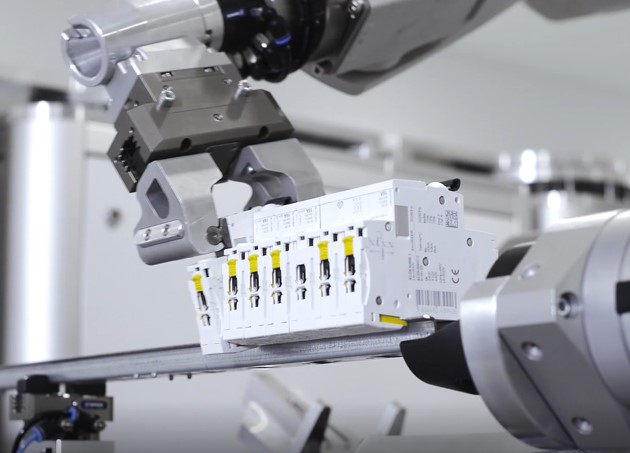

For example, robot-controlled manufacturing for the placement of DIN rails with rail-mounted devices and their wiring as well as laser labeling requires answers to the following questions:
• what are the dimensions of the device?
• where are the connections located?
• which cross sections can be used?
• where and how is the assembly done?
• which labeling surfaces are available?
To serve the market with the required amount of product data, component and system manufacturers need a simple and efficient software solution for the (mass) maintenance of this high-value data.

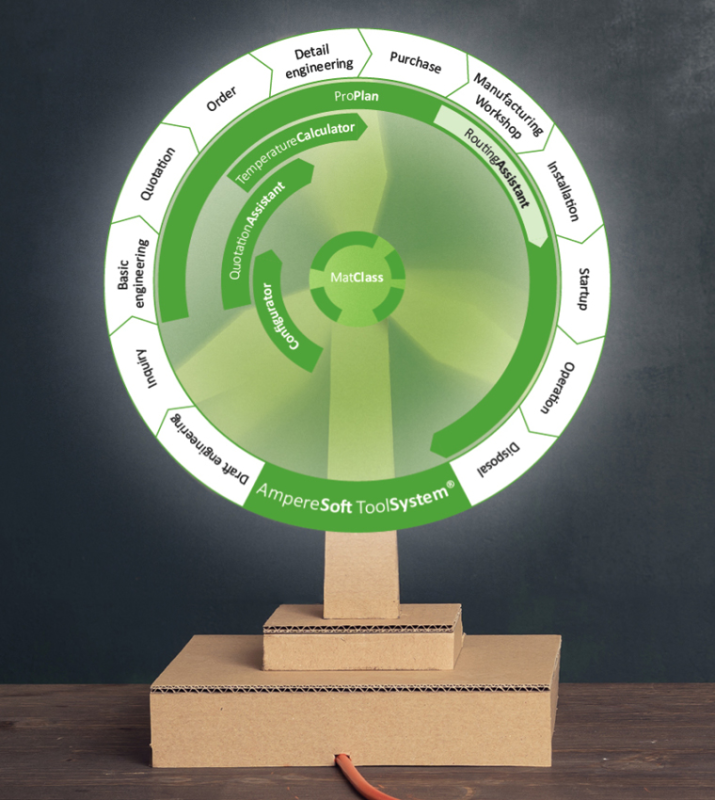

The AmpereSoft ToolSystem combines innovative software tools for your engineering process. You benefit herefrom the shared use of data once it has been entered. With each process step your projects will gain more information, giving you the overview and allowing you to track any changes and ensure they are taken into account in all process steps. The shared database—for example, the comprehensive and detailed product data of the manufacturers— is accessible to all tools at any time. This ensures the required quality assurance and documentation.
AmpereSoft ProPlan
✔ The convenient and practice-based CAE System for electrical documentation
AmpereSoft MatClass
✔ The tool for the easy management, flexible distribution and efficient use of your product data to speed up the process
AmpereSoft Configurator
✔ The system for configuring complex switchgear assembly and component systems
AmpereSoft QuotationAssistant
✔ For the rapid creation of quotations and tenders with bills of quantities created by the user or GAEB data
AmpereSoft RoutingAssistant
✔ Fully automatic wiring routing taking into account cabinet doors and other depth dimensions by determining via the x, y and z coordinates
AmpereSoft TemperatureCalculator
✔ Produce standard compliant verifications on temperature in the switchgear assembly in accordance with DIN EN 61439-1
AmpereSoft ToolDataManager
✔ The cross-project search and maintenance tool for working with AmpereSoft ProPlan
»Whether in sales, design, purchasing, work preparation, warehousing or production—the material master data is always available across tools and processes
